Warehouse Layout Optimization: Step-by-Step

With the right layout, your warehouse will drive efficiency, safety, and scalability. Learn how to deliver your project from conceptual design to construction, step-by-step.


Key takeaways

What does warehouse layout mean?

The design of a warehouse layout refers to the strategic floor plan and organization of a warehouse facility. This encompasses the arrangement of storage areas, the placement of items, the allocation of space for receiving and shipping operations, and the pathways for both people and material handling equipment such as forklifts. A well-thought-out warehouse layout is essential for optimizing operations, enhancing safety, and increasing efficiency within a distribution center or storage facility. A well-planned layout usually consists of six components.

Six key components of warehouse layout

In designing an effective warehouse layout, it's essential to clearly define various areas. The six critical areas of a warehouse that should be distinctly defined are:

1. Receiving

For processing incoming shipments

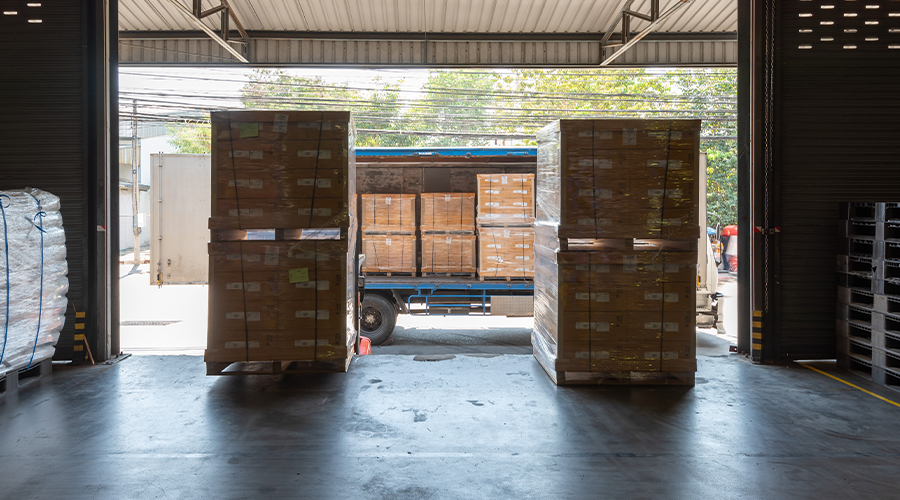

A warehouse receiving area. Image.

2. Storage

May involve an automated storage and retrieval system (AS/RS), or shelving for manual warehouses

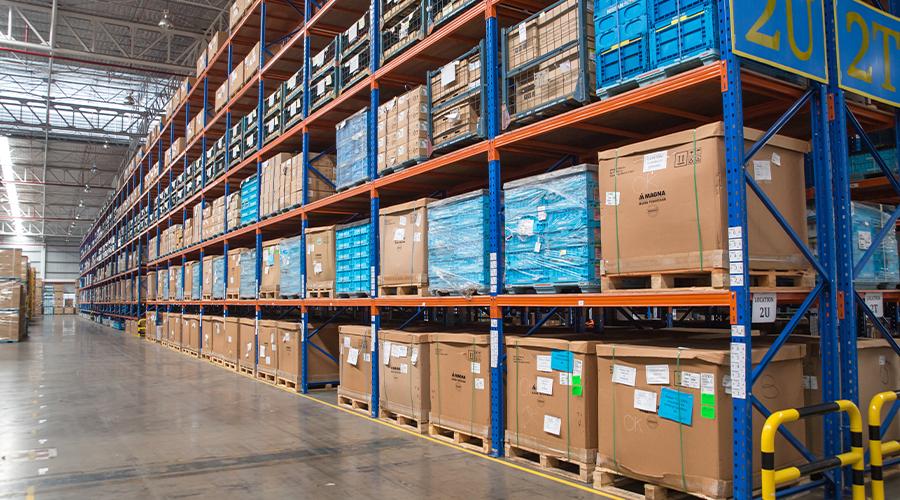

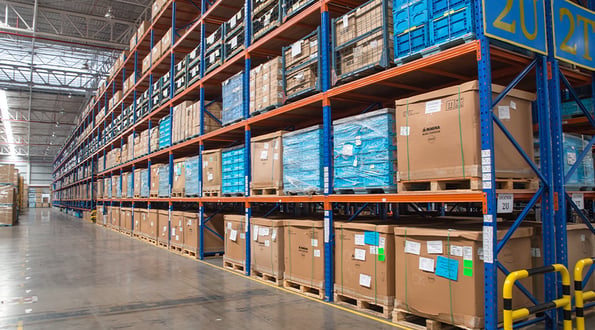

Pallets of inventory arranged on storage racks. Image.
Shelving for manual operations requires sufficient space.

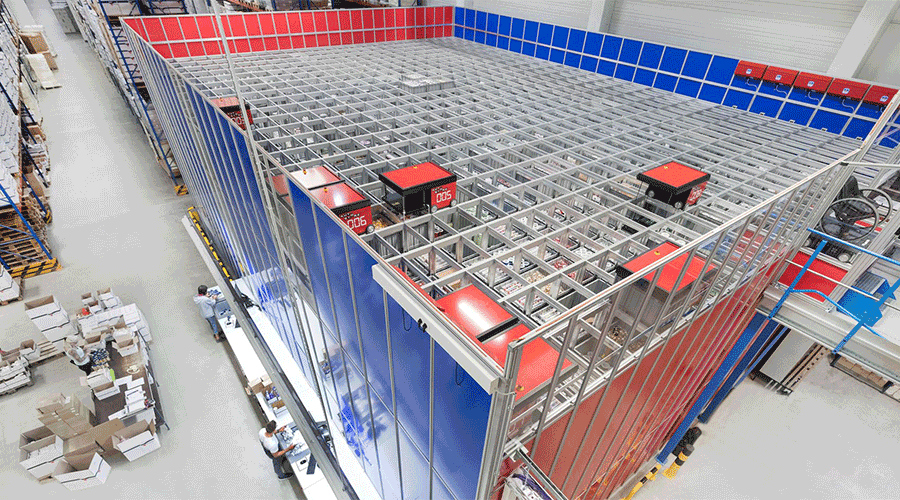

AutoStore Robots on a Grid at C.E. Pattberg in Germany. Image.
The C.E. Pattberg warehouse in Germany uses a combination of racking and an AutoStore AS/RS solution to maximize space efficiency.

3. Picking areas

Where workers retrieve products to fulfill orders

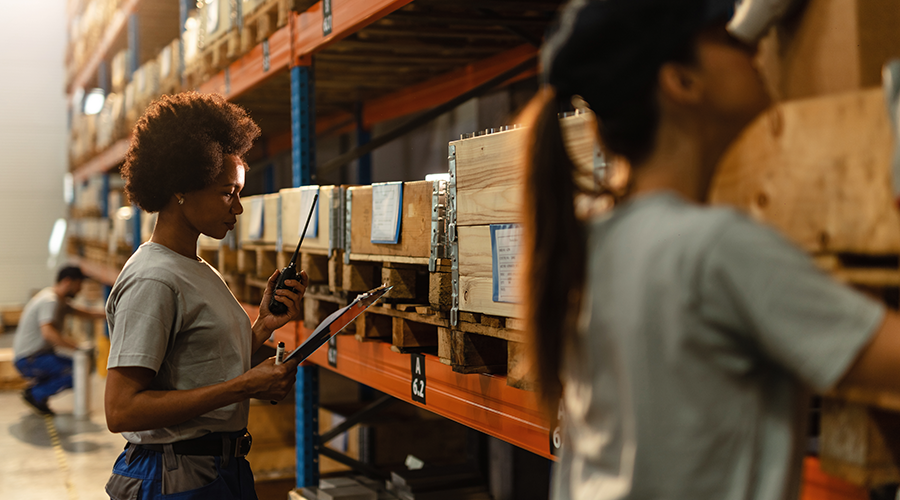

Workers retrieving items from a storage rack. Image
In a manual picking operation, workers walk to inventory locations and carry products to downstream packing and shipment locations.

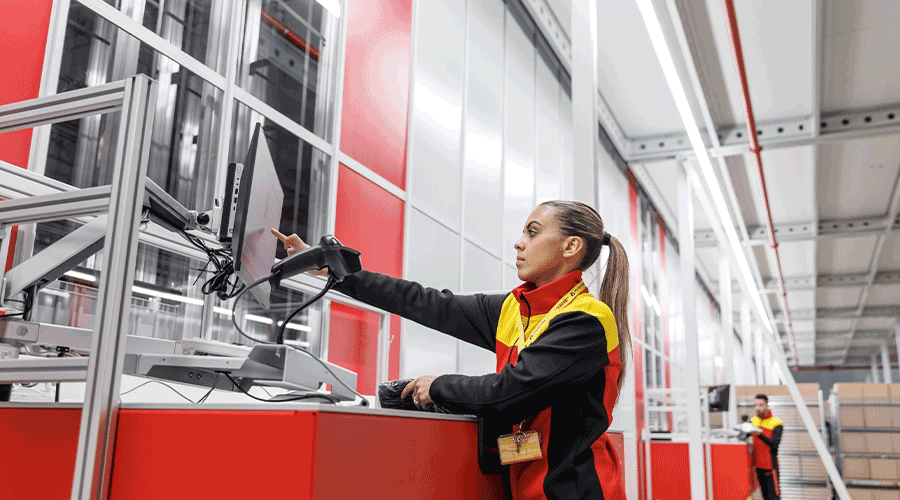

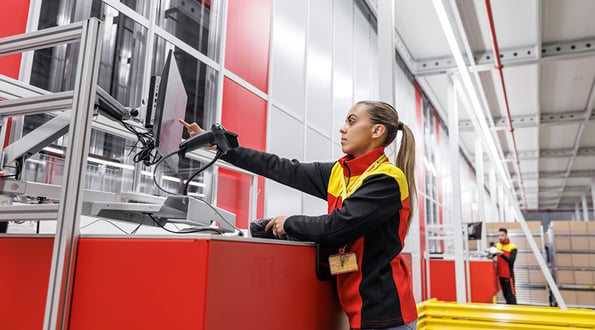

Warehouse workers at DHL picking items from AutoStore cube storage Grid. Image.
AS/RSs deliver goods directly to workers. Seen here are DHL employees picking items from stationary AutoStore Ports that eliminate walking and strenuous lifting.

4. Packing stations

Where orders are prepared for shipment

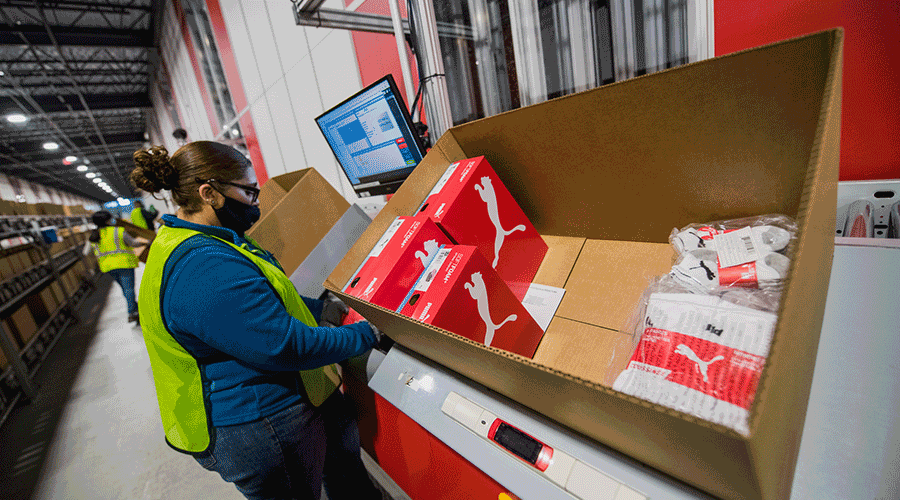

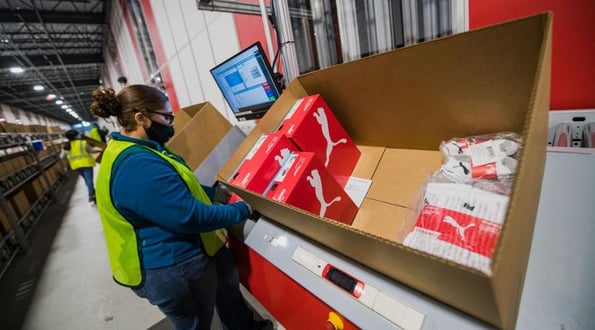

A worker picking and packing items from an AutoStore Port at PUMA in Indiana. Image.
Automated warehouse layouts not only save space, but also time. As shown here, a PUMA employee in Indiana picks and packs items from a single AutoStore Port.

5. Shipping zones

Outgoing orders are staged and loaded onto trucks

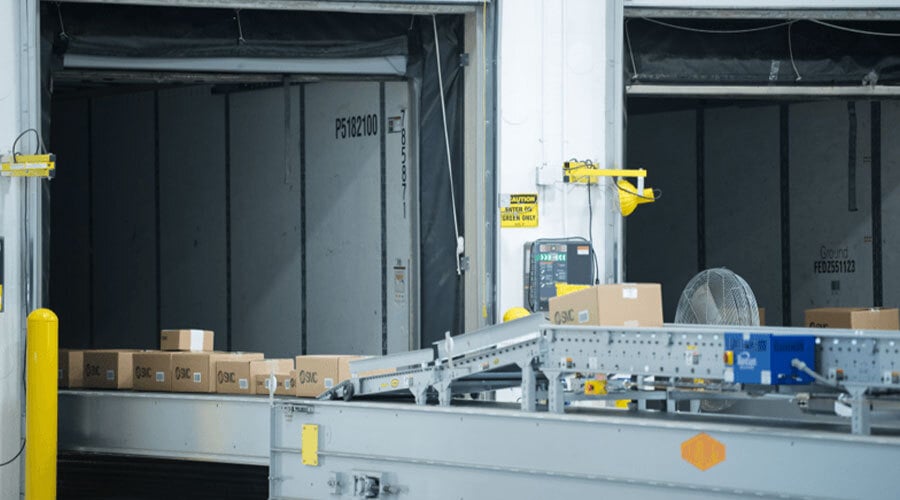

A conveyor carrying boxed goods to a loading dock at SMC in Indiana. Image.
At SMC in Indiana, items picked from an AutoStore Grid are packed, labeled, and scanned along an automated route and carried by conveyor to loading docks.

6. Support areas

Includes offices, restrooms, and break rooms

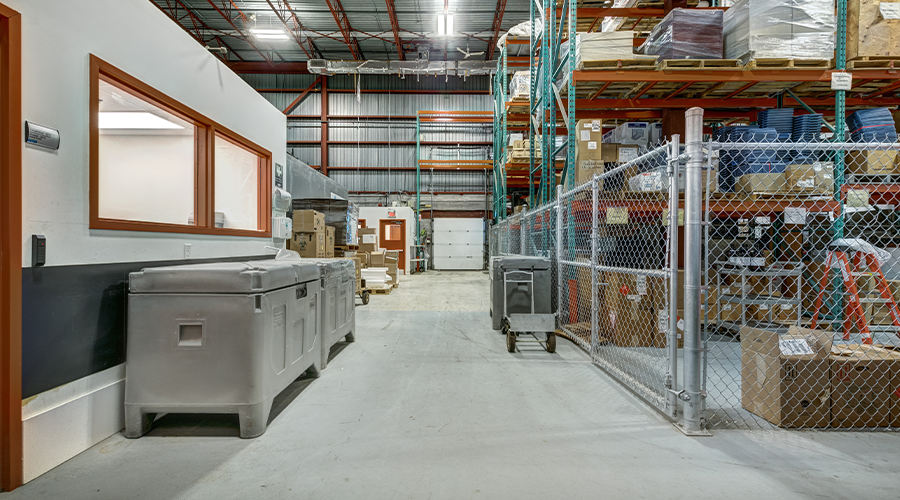

Employee office/welfare area within a warehouse. Image.

The layout may also incorporate specialized storage solutions, such as climate-controlled units for sensitive goods, high-density storage systems for maximizing space efficiency, and AS/RS to speed up operations and reduce labor requirements.

Why warehouse layout matters

The design of a warehouse is crucial for several key reasons:

  • Operational efficiency: An optimized layout streamlines the flow of goods, reducing handling time and labor costs, leading to quicker order fulfillment.
  • Safety: A thoughtfully designed warehouse minimizes accidents by ensuring clear pathways and properly storing hazardous materials, protecting employees and inventory.
  • Scalability and flexibility: Good design allows for adjustments to accommodate changing inventory levels and order volumes, supporting business growth without major disruptions.
  • Space utilization: Efficient use of space enables more inventory to be stored, essential in areas where real estate is costly.
  • Technology integration: A modern warehouse layout facilitates the adoption of technologies like robotics and warehouse management systems, boosting productivity and accuracy.
  • Customer satisfaction: Efficient operations enhance customer satisfaction by ensuring faster processing times and accurate order fulfillment, crucial for maintaining loyalty.

In summary, the design of a warehouse is a critical factor in the operational success of businesses involved in the storage and distribution of goods. It influences not only the day-to-day efficiency and safety of operations but also the long-term growth and adaptability of the business. As such, investing time and resources into thoughtful warehouse design is a strategic move that pays dividends in operational performance and customer satisfaction.

Factors influencing warehouse layout planning

When designing a warehouse layout, several critical factors come into play, shaping the overall efficiency and functionality of the facility. The factors you need to consider include:

Type of goods stored: Different goods require different storage methods. Perishable goods need refrigeration, while bulky items may need larger shelving spaces or floor storage.

Volume and variety of inventory: High-volume warehouses or those with a wide variety of items require different strategies for organization and accessibility.

Receiving and shipping volumes: The frequency and volume of incoming and outgoing shipments influence the layout of loading docks and staging areas.

Material handling equipment: The choice of equipment, such as forklifts, conveyors, or automated systems, affects aisle width and storage height.

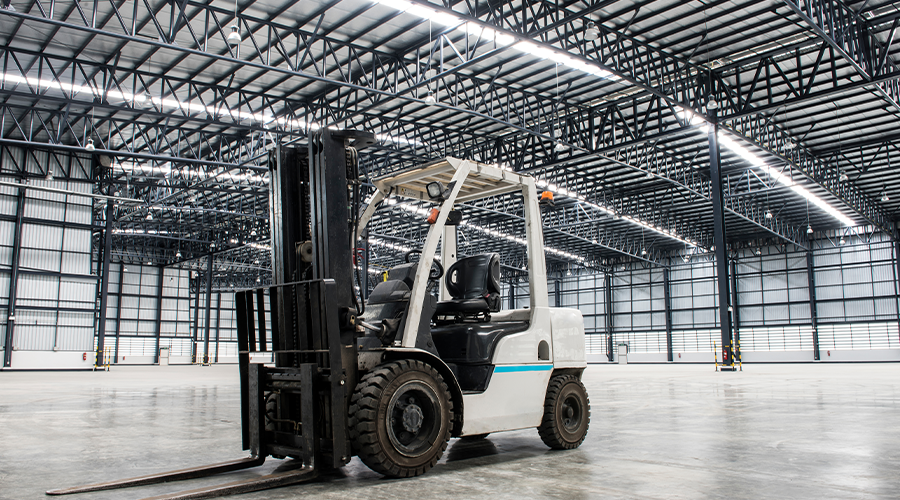

A forklift parked within an empty warehouse. Image.
Building characteristics like ceiling heights and floor load capacities, along with your choice of equipment, are important factors to consider when designing a warehouse layout plan.

Warehouse operations: The nature of operations — whether focusing on long-term storage, cross-docking, or fulfillment for online retail — affects layout considerations.

Labor and safety regulations: Compliance with safety standards and labor laws can dictate certain layout requirements, including emergency exits, lighting, and aisle spacing.

Technology integration: The extent to which technology, like warehouse management systems and automation, is integrated can influence layout design.

Building characteristics: Physical constraints of the building, including ceiling height, column spacing, and floor load capacity, limit layout options.

Considering these factors beforehand is crucial for optimizing warehouse efficiency and functionality. By understanding the specific needs related to goods type, inventory levels, and operational processes, planners can design a layout that supports smooth workflows, maximizes space utilization, and ensures safety. This foresight helps in avoiding costly modifications and enhances the warehouse's ability to adapt to changing demands, ultimately contributing to more effective and sustainable warehouse operations.

Transitioning from the overarching factors that influence warehouse layout planning, it’s also crucial to understand the fundamental needs that the general layout of a facility should address to ensure operational success and efficiency.

What a general warehouse layout should cover

The general layout of a warehouse should be designed to meet several essential needs:

Efficient flow of goods: Ensuring a seamless flow from receiving to storage to picking to shipping minimizes handling and movement, improving operational efficiency.

Safety and compliance: The layout must prioritize worker safety, incorporating clear signage, well-defined emergency exits, and adherence to occupational safety standards.

Flexibility and scalability: The design should allow for easy adjustments to accommodate business growth, seasonal fluctuations, and changes in inventory levels.

Optimal space utilization: Making the most of available space is critical, using vertical storage solutions and optimizing layout to increase storage capacity.

Accessibility and organization: Goods should be organized logically, with frequently accessed items placed for easy retrieval to speed up picking and reduce errors.

Technology and automation compatibility: The layout should support the integration of current and future technologies, from barcode scanners to automated guided vehicles.

Cost efficiency: Beyond operational considerations, the layout should be cost-effective, minimizing the need for extensive modifications and enabling efficient use of resources.

By addressing these essential needs, the general layout of a warehouse can significantly contribute to the effectiveness and success of its operations, directly impacting the bottom line and customer satisfaction.

Examples of different warehouse layouts

Warehouse layout design is tailored to the specific operational needs, inventory characteristics, and strategic objectives of each facility. Understanding different warehouse layout examples can help in identifying the most efficient design for a given set of requirements. Here are several common types of warehouse layouts:

1. Traditional layout

Description: This layout features rows of shelving or racks arranged in long aisles, maximizing vertical space and floor storage. It's suitable for warehouses with a wide variety of inventory types and sizes.

Best for: Warehouses with a diverse inventory that requires manual picking

2. U-shaped layout

Description: The U-shaped layout places the receiving and shipping docks in close proximity to each other, with storage areas arranged in a U shape around them. This design minimizes travel time between receiving, storage, and shipping.

Best for: Operations prioritizing quick turnaround times for goods, such as cross-docking facilities

3. L-shaped layout

Description: Similar to the U-shaped layout but configured in an L shape, with receiving and shipping areas positioned at adjacent sides of the L. This layout is often used in warehouses with space constraints.

Best for: Smaller warehouses or sections within larger facilities that handle specific types of goods

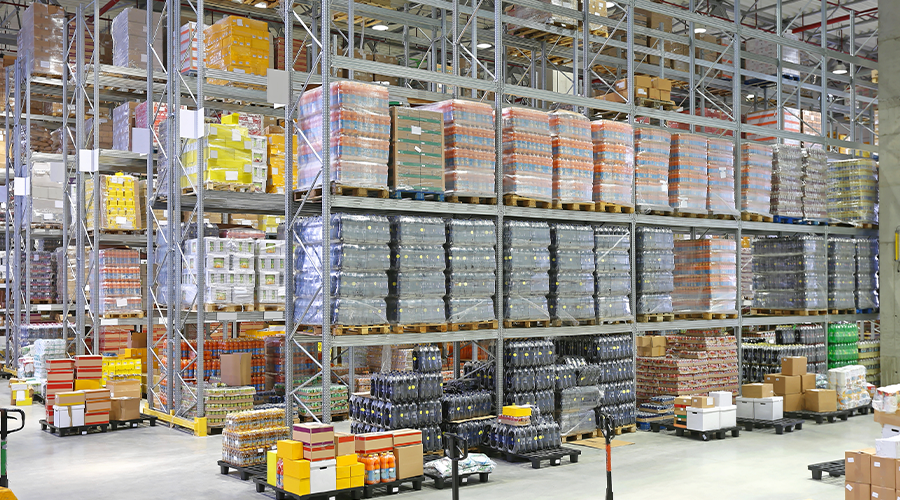

Vertically stacked inventory within a warehouse. Image.
A traditional warehouse layout features rows of shelving or racks arranged in long aisles, maximizing vertical space and floor storage.

4. I-shaped (throughput) layout

Description: The I-shaped layout aligns the receiving and shipping docks on opposite ends of the warehouse, facilitating a straight flow of goods through the facility from receiving to shipping.

Best for: Warehouses focusing on a linear flow of goods, especially those with high volumes of inbound and outbound shipments

5. Zone layout

Description: This layout divides the warehouse into different zones based on the type of goods, pick type, or storage requirements. Each zone is optimized for specific operations, such as bulk storage, pick-and-pack, or hazardous materials.

Best for: Warehouses with diverse product types and picking requirements, enabling specialized handling and storage

6. Multitier layout

Description: Multi-tier layouts incorporate mezzanines or multiple floors to utilize vertical space efficiently, often used in conjunction with picking operations.

Best for: Warehouses with limited floor space but high ceilings, needing to maximize storage density for small to medium-sized goods

7. Automated layout

Description: Designed to accommodate AS/RS, robotics, and conveyor systems, this layout minimizes the need for manual handling and optimizes operations for speed and accuracy.

Best for: High-volume, fast-paced warehouses requiring precision and efficiency, such as e-commerce fulfillment centers

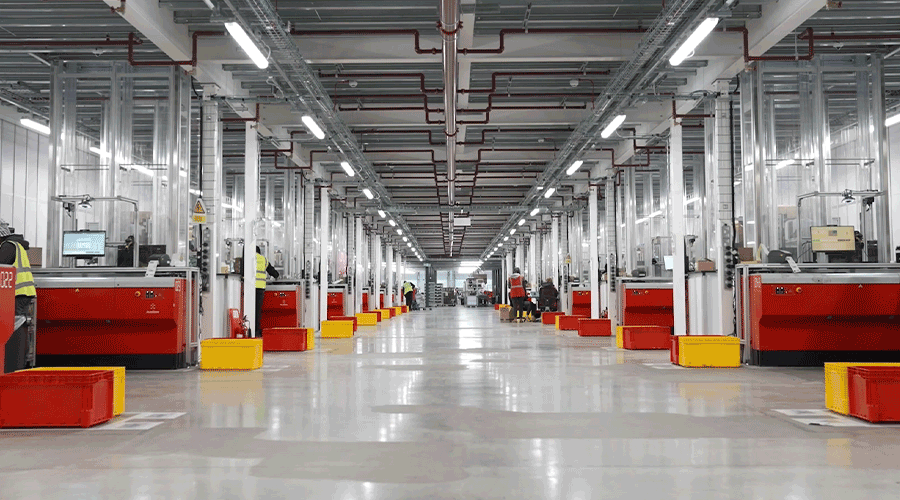

Workers picking goods from AutoStore Ports at THG warehouse in England. Image.
The Hut Group (THG)'s automated warehouse in the UK is laid out with an AutoStore pick tunnel and 56 CarouselPorts to create a high-speed, high-throughput fulfillment operation.

Each of these layouts has its advantages and is suited to different operational strategies and types of inventory. The choice of layout depends on several factors, including the physical characteristics of the goods, the volume of inventory, the nature of warehouse operations, and the specific goals of the organization as mentioned previously.

From understanding the variety of warehouse layouts that cater to different operational needs, we now delve into the actionable steps to design the perfect warehouse layout for your specific requirements. These steps guide you through conceptualizing to implementing a layout optimized for efficiency, safety, and scalability.

Ten steps to design the perfect warehouse layout for your operations

Creating an efficient warehouse layout is pivotal for optimizing operations, enhancing productivity, and achieving cost-effectiveness. Follow these steps to design a warehouse layout that aligns with your operational needs and goals:

Before diving into the specific requirements and operational workflow, take a moment to conceptualize the strategic framework of your warehouse. This involves envisioning the warehouse's role within the larger supply chain, its primary function (e.g., distribution center, fulfillment hub, storage facility), and how it needs to adapt to future trends and technologies. This high-level strategic planning sets the stage for more detailed layout planning, ensuring that the warehouse's design aligns with long-term business goals and industry advancements.

1. Understand your requirements

Begin by assessing your operational needs, including the type of goods you handle, inventory volume, throughput rates, and any special handling requirements. Understanding these factors will guide the overall design and functionality of your layout.

2. Analyze your workflow

Evaluate your current workflow to identify bottlenecks, inefficiencies, or safety concerns. Consider the flow of goods from receiving to shipping and the processes in between, like storage, picking, and packing. A streamlined workflow minimizes unnecessary movement and handling.

3. Select the right layout type

Based on your workflow analysis, choose a layout type (e.g., U-shaped, L-shaped, zone layout) that best supports your operational flow and space utilization. The right layout type will enhance efficiency and adaptability.

4. Maximize space utilization

Optimize the use of available space by considering cube storage solutions, multi-tiered systems, and compact storage units. Efficient space utilization is crucial in reducing costs and accommodating growth.

5. Incorporate flexibility and scalability

Design your layout with flexibility in mind to easily adjust to changes in inventory levels, product ranges, or operational strategies. Scalability ensures your layout can evolve with your business.

6. Consider safety and accessibility

Safety should be a top priority. Ensure clear pathways, adequate lighting, and proper signage. Accessibility for both employees and material handling equipment is crucial for maintaining a safe and efficient environment.

7. Integrate technology and automation

Evaluate the potential for integrating technology and automation into your layout. AS/RS, conveyor belts, and warehouse management systems (WMS) can significantly enhance efficiency and accuracy.

8. Optimize receiving and shipping areas

Design your receiving and shipping areas for smooth and efficient operations. This includes adequate space for inspection, sorting, and temporary storage. Optimizing these areas can significantly impact overall warehouse efficiency.

9. Plan for waste management and sustainability

Incorporate areas for waste management and recycling into your layout. Planning for sustainability not only benefits the environment but can also lead to cost savings and improved brand image.

10. Review and iterate

Finally, review your layout design with key stakeholders, including warehouse staff, to gather feedback. Be prepared to iterate on your design to address any overlooked needs or potential improvements.

Designing the perfect warehouse layout requires a thoughtful approach that balances operational efficiency with flexibility and safety. By following these steps, you can create a warehouse layout that supports your current operations while allowing for future growth and changes.

Special considerations for automated warehouse layouts

When planning the layout for an automated warehouse, incorporating data-driven models and simulations of the automation system becomes crucial. These tools offer invaluable insights into how automated elements can be integrated efficiently within the warehouse layout. They help in:

  • Predicting system performance: Simulations can forecast how automated systems will perform in the designed layout, helping to optimize the placement of machinery and equipment.
  • Identifying potential bottlenecks: By modeling the flow of goods through the warehouse, it's possible to identify and address potential bottlenecks before they become issues.
  • Ensuring safety and efficiency: Data-driven models can also ensure that the layout promotes safe interactions between automated systems and human workers while maintaining high operational efficiency.
  • Facilitating scalability: These models can project future growth and how new technologies can be incorporated, making the warehouse layout adaptable to future needs without extensive redesigns.

In essence, for warehouses aiming to leverage automation, integrating these advanced planning tools into the layout design process is not just beneficial but essential. They enable a more precise, efficient, and flexible warehouse operation, ready to meet the demands of modern logistics and supply chain challenges.

While data-driven models and simulations lay the groundwork for integrating automation into warehouse operations, the AutoStore system exemplifies the practical application of these concepts, offering a specialized approach to layout optimization.

The AutoStore impact on warehouse layout optimization

AutoStore stands out as a revolutionary system, transforming warehouse layouts with its innovative solutions. These are just some of possibilities of the world’s fastest AS/RS system per square meter:

1. Optimizing space and efficiency

AutoStore significantly enhances warehouse layout by optimizing the use of available space and streamlining warehouse processes. Its compact modular design capitalizes on vertical space, offering the highest density storage solution on the market. This approach not only conserves floor space but also maximizes storage capacity.

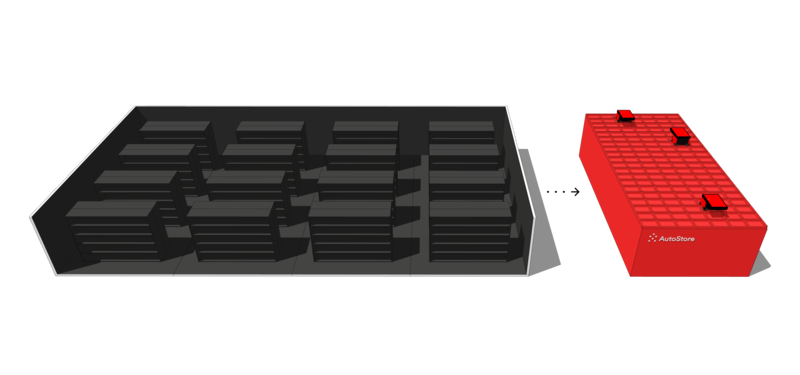

Image of AutoStore Grid size compared to traditional warehouse.
AutoStore is a cube storage solution that consolidates inventory in a dense Grid to provide 4x the storage capacity within the same footprint.

2. Scalability and adaptability

The modular nature of AutoStore allows for easy scalability, accommodating business growth and changing needs without extensive modifications. This adaptability ensures that warehouses can evolve alongside market demands and business expansions.

3. Integration with technological systems

AutoStore seamlessly integrates with WMS and enterprise resource planning (ERP) systems. This integration facilitates a cohesive workflow that significantly improves inventory management, accelerates order fulfillment, and streamlines material handling. Through automation, AutoStore generates valuable data, offering insights to further refine and enhance warehouse operations.

Enhancing efficiency in warehouse design and space utilization with AutoStore

In the quest for achieving peak efficiency and maximizing space utilization in warehouses, AutoStore stands at the forefront with its innovative approaches and solutions. The design phase and ongoing strategies for space maximization play critical roles in how AutoStore transforms warehouse operations.

Design phase optimization with AutoStore

At the heart of AutoStore's effectiveness is a meticulous design phase that lays the foundation for an optimized warehouse layout. This phase incorporates several key methods:

Data-driven layout design: Utilizing customer datasets, AutoStore experts analyze SKU characteristics, order profiles, and system capacity to craft the most efficient warehouse layout. This tailored approach ensures that the layout is optimized for the specific operational needs of the warehouse.

Virtual simulation: Simulation tools are employed to virtually test and optimize layouts before physical implementation. This step allows for fine-tuning and ensures that the proposed design maximizes efficiency and space utilization.

Collaborative planning: Collaboration between AutoStore experts, system integrators, and clients is essential. This partnership guarantees that the final design reflects the collective expertise and addresses all stakeholder requirements, ensuring a customized solution that seamlessly integrates into existing workflows.


Warehouse layout strategies for maximizing space utilization

Once the foundation is laid, AutoStore employs strategic methodologies to ensure that every square inch of warehouse space is used effectively:

Vertical storage optimization: AutoStore vertical storage solutions and compact Bin design are pivotal in maximizing available space. By efficiently organizing and portioning Bins, AutoStore keeps the warehouse floor free of inventory, leveraging vertical space for storage.

Integration with conveyor systems: To enhance the movement of goods within the warehouse, AutoStore systems are integrated with conveyor systems. This facilitates a smooth flow of goods between the storage Grid and other warehouse areas, optimizing material flow and reducing congestion.

Real-time monitoring and analytics: Implementing AutoStore's Unify Analytics™ for continuous monitoring and data analysis enables ongoing assessment of the AutoStore system’s performance. Insights into storage utilization, picking efficiency, and system throughput allow for continuous improvement and optimization.


Regular system audits and maintenance: To maintain optimal performance, regular audits and maintenance of the AutoStore system are conducted. These checks ensure that the system, including Robots, conveyor systems, and Grid components, is functioning at its best, preventing downtime and ensuring efficiency.

Through these design and operational strategies, AutoStore not only enhances the physical layout of warehouses but also brings a level of efficiency and optimization that traditional storage solutions cannot match. By focusing on data-driven design, collaborative planning, and continuous improvement, AutoStore delivers a scalable, flexible solution that addresses the complex challenges of modern warehouse operations.


What are the typical layouts at a warehouse?

Typical warehouse layouts include U-shaped, I-shaped, L-shaped, and warehouse zones, each designed to optimize the flow of goods and operations based on specific operational needs.

How do I build a warehouse layout?

Building a warehouse layout involves assessing your space, understanding your operational needs, planning for storage and picking areas, considering material handling equipment, and integrating technology for inventory management and order processing.

What is an effective warehouse layout?

An effective warehouse layout efficiently utilizes available space, minimizes handling costs, supports a smooth flow of goods, enhances safety, and can adapt to changing business needs, ultimately improving operational efficiency and productivity.

What is the most common warehouse organization layout?

The most common warehouse organization layout is the U-shaped layout, which positions the receiving and shipping docks in close proximity to one another to facilitate a smooth flow of goods from receiving to shipping, reducing travel time and handling costs.
